Anchor Alert

What people are saying about Anchor Alert...

  • "We had 20+ kts of wind and rising when the alarm went off. Spotted we were dragging at an alarming speed towards the South breakwater at Portimao, managed to start engine and get to safety but I think without the app we would have hit it or run aground near it. So extra special thanks for producing such an excellent app that works so well. Other drag alarm apps have not been successful and my Garmin GPS is hard to set and has proved unreliable. Your app certainly gets my vote!" - Nigel Heaton
  • "Saved my bacon! I used this app sailing in the San Juans last summer. I am a fairly novice and paranoid sailor, but using this app allowed us to have an amazing week. Using this app we were able to anchor in some very tight conditions in weather. There was one night where the app detected us dragging the achor in a tight anchorage with other boats. Without this app, our sailing trip would have: a) not been possible, or b) been disastrous. Thanks to the folks that developed smart phones and apps!" - Erik Gerking
  • "Must have for cruisers! You must have this if you anchor your boat and can't stay on deck to be sure you stay put. Sleep soundly or go ashore for the day and know the boat is where you put it."  - Daniel Otte
  • "Remarkable, The most realistic and effective app on Android" - Pierre Lavergne


What is Anchor Alert?

Anchor Alert is an advanced anchor alarm application from SlimJiM Software developed exclusively for Android. Anchor Alert was the first anchor alarm available for Android and still leads the rest in terms of features and reliability.

It features point and click anchor projection using the phone's built-in GPS and compass and allows setting of an exclusion area and optional slack zone. Together with the audible, haptic (vibration) and SMS* alerts which may be used in any combination, the capability to control it by SMS* from another phone and support for running as a background task which allows the phone's GPS to sleep to save power, Anchor Alert is the world's most advanced smart-phone based anchor alarm.

https://play.google.com/store/apps/details?id=uk.co.slimjimsoftware.anchoralert*SMS functions require devices that support telephony.

Anchor Alert is only available on the Google Play store.

Read on to learn about some of the advanced features of this application and some of the other uses it can be put to...

(please note: due to the use of some advanced functions only available in newer releases of Android, Anchor Alert is not available for versions earlier than v2.1. If you are stuck on an older version of Android and wish to use Anchor Alert you should contact your carrier about an upgrade.


Main Features of Anchor Alert:

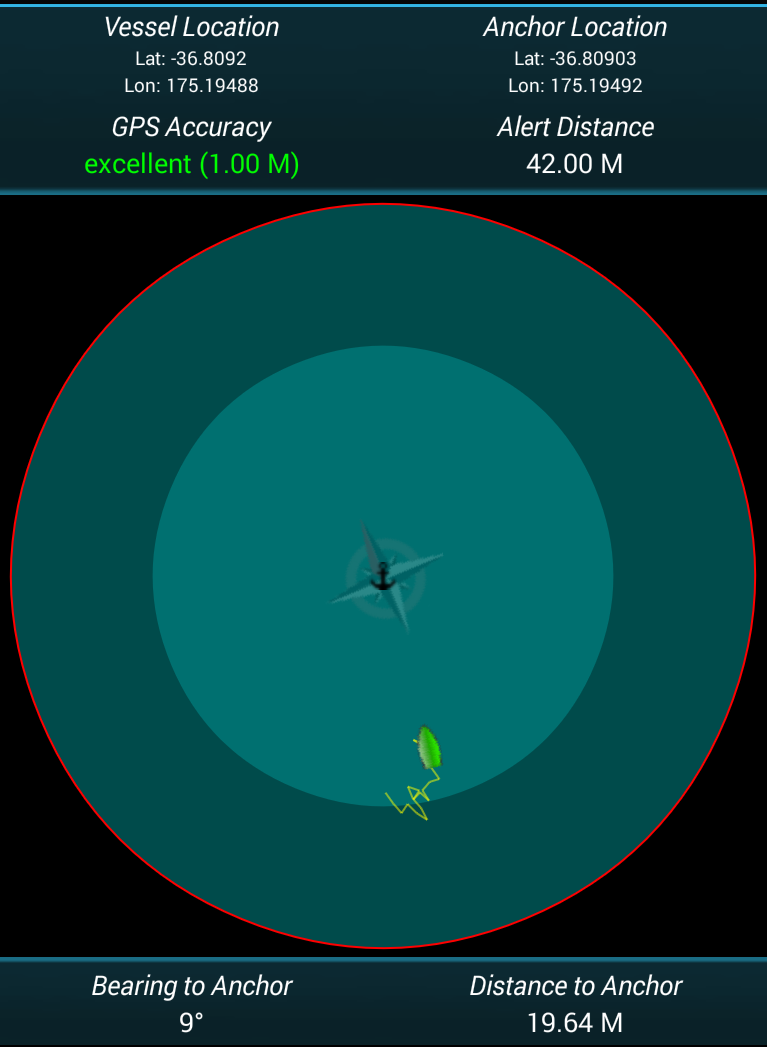

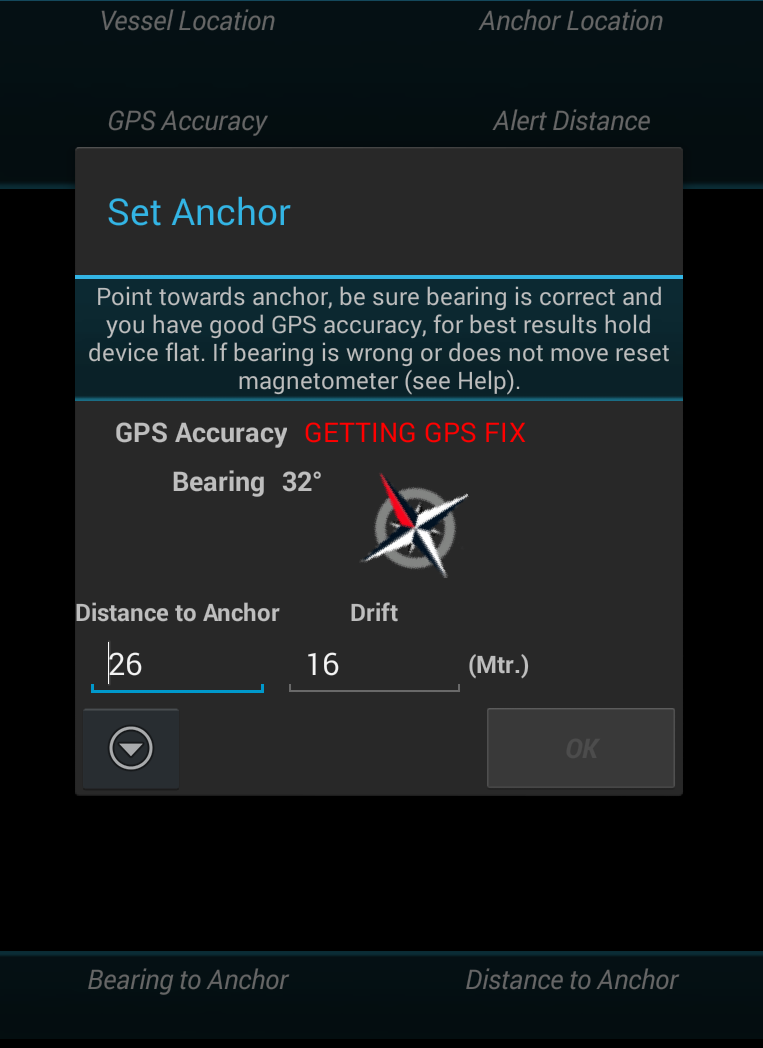

Projecting the Anchor Position.

Unlike other anchor alarms, Anchor Alert allows you to project an anchor position in any direction and by any distance you want by simple point and click.

Anchor Alert uses Android's magnetic declination tables to automatically correct the phone's built-in compass for local magnetic differences so that an accurate anchor position can be calculated at any time and at any position on the globe. These magnetic declination tables are updated as required with the Android system so they will always remain as up to date as your phone.

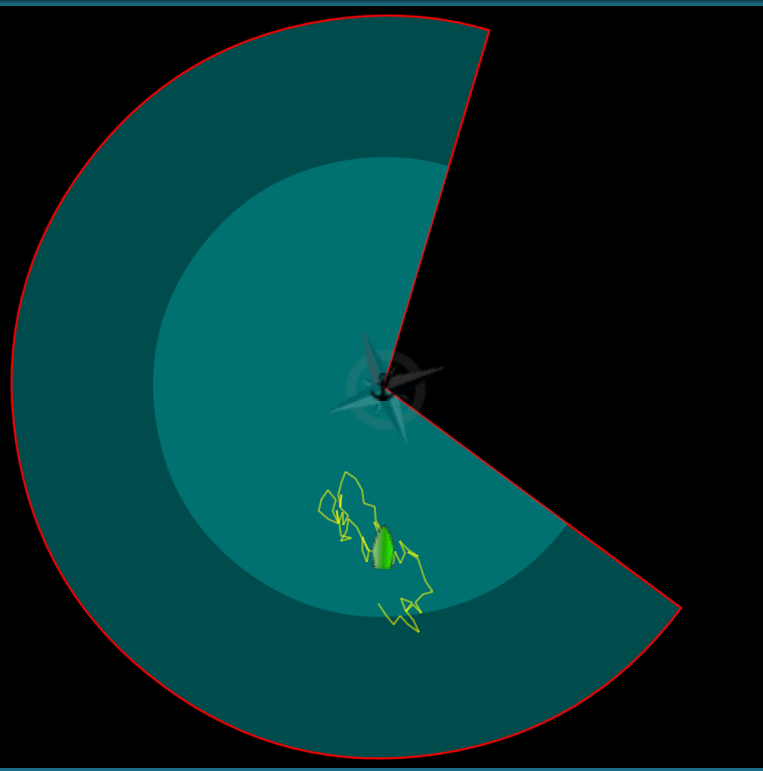

Exclusion Angle and Slack Zone.

Anchor Alert allows any sector of the anchor circle to be excluded from the allowed swing area and if your vessel drifts into it, an alarm will be triggered.

This may be useful when you find the need to anchor your vessel close to land for more protection, close to another vessel that is moored to a buoy, or when anchored in a steady wind and you want to know when the wind changes. The exclusion area can be input with precision from the application preferences or with ease by touch and drag accessible by long-pressing on the centre of the screen.

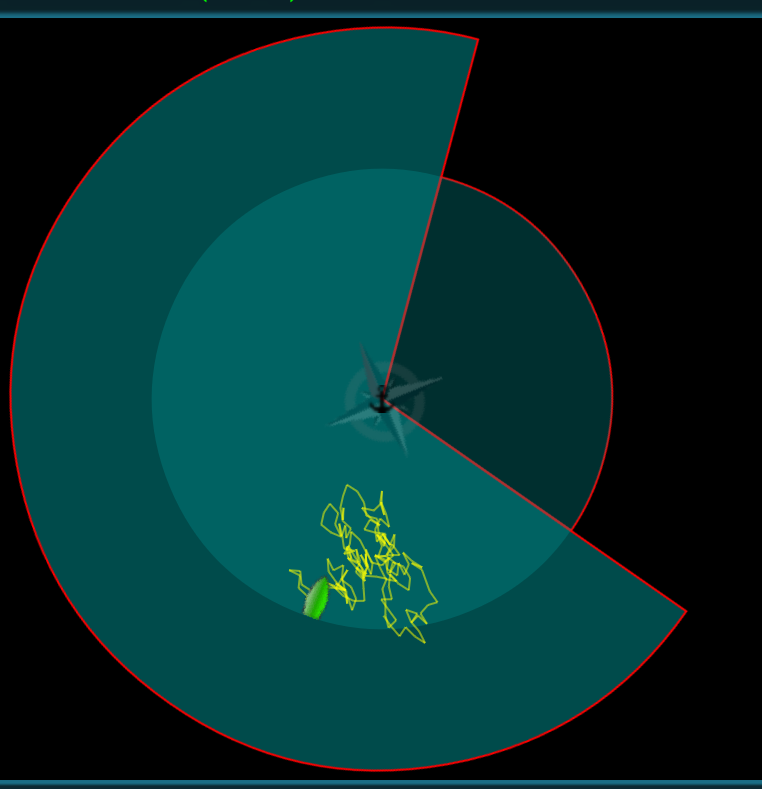

You may also find at times that you wish to define a slack zone within the exclusion area. For example, when anchored in a bay where the vessel might swing around 180 degrees from it's original position due to tidal changes but you may only wish to be alerted if the anchor is likely to drag and not when the vessel has just wandered over the anchor position at slack tide. Anchor Alert allows this too. By setting the Slack Zone option and independently changing both the distance to anchor and the drift distance, any size slack area may be set around the anchor position.

SMS Alerts* with embedded Google maps URLs.

Anchor Alert also has the ability to show you where your vessel is. Set the SMS response format to the Google maps URL option and using the SMS alerts option send a STATUS text from another phone, you'll receive the location of your vessel formatted as a Google maps link which can be opened in most mobile browsers or the Google Maps app.

Advanced Features:

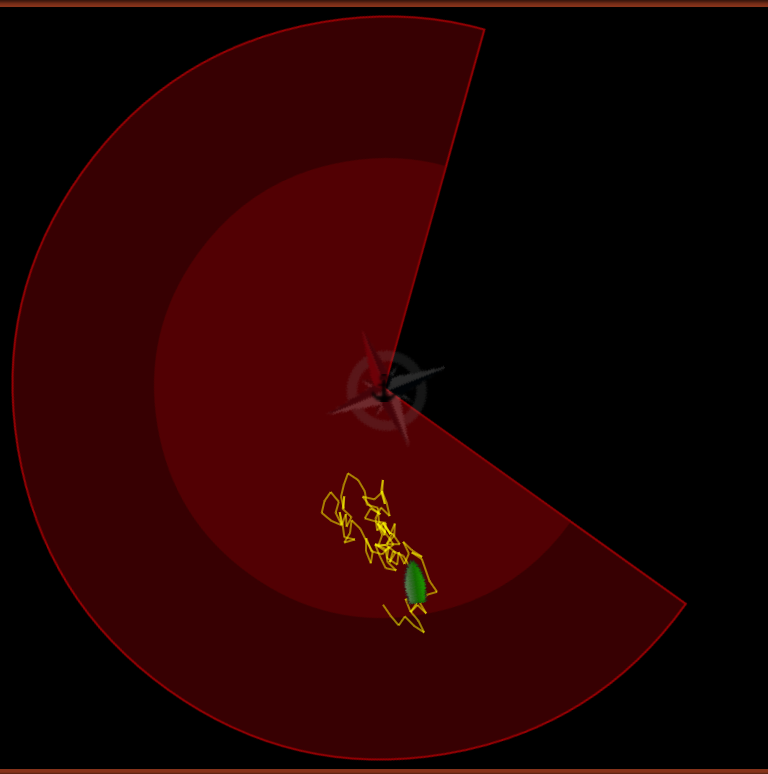

Night Mode

Anchor Alert also has a night mode that dims the screen and changes the colour scheme so you don't lose your night vision.

Background Monitoring

Anchor Alert is designed to take full advantage of Android's multi-tasking ability. It is capable of monitoring the anchor position while running as a background task and allows you to use your device for other things such as checking your email or taking a call. No other smart-phone based anchor alarm can do that!

Metric or Imperial

Prefer to use feet? Or do you work better with the metric system?

No problem. Anchor Alert supports both metric and imperial measurements, just select your preference from the menu and it's all taken care of.

Multiple Alarm Options

Anchor Alert supports audio, vibration and SMS (text message) alert options. Any combination of them may be used together and a visible alert dialog is also displayed through which you can cancel or snooze the alarm for a period that you define.

Low Battery Warning

Anchor Alert can also inform you if your battery is getting low. By selecting the low battery alert in the application settings a visual notification with optional audio and vibration alerts will be triggered to alert you that the battery is running down. Once at 15% power, then again at 10% and at every change from 5% and below. Plus, if you have chosen to receive SMS alerts a text message will be sent informing you of the remaining power level. These warnings will stop once you stop monitoring, either from Anchor Alert itself or by texting STOP to the device from another phone.

SMS Control Options*

When run on a device that supports telephony Anchor Alert can be controlled via SMS from another phone.

Shutting down Anchor Alert remotely is easy, just text STOP to the device.

You can also receive a text message that contains the latest distance and bearing from the anchor position, the absolute co-ordinates or a Google maps URL showing the location of the device at any time by simply texting STATUS back to the device.

Security and Privacy

Anchor Alert takes your security and privacy seriously too. Only the single phone number defined in the application preferences can send control messages and receive status alerts. Anchor Alert does not collect any personal data whatsoever and, except where required by law, SlimJiM Software will never share your personal information with anyone for any reason.


Other Uses of Anchor Alert:

Take Me To...

Set the exclusion area start position to 190 degrees and set the scope to 340, set the anchor position to however far away your target is, say 30,000 metres (30kM) or 100,000 feet (19 miles), from your current position, point the phone in the direction you wish to travel and press OK to set anchor. You can then use Anchor Alert as a guide to your location, stray too far off course and you'll get an alert, the alert area also gets smaller the closer you get to your desired location (the anchor position) so you need never be too far off course. Make sure anchor tracking is enabled too and let Anchor Alert guide you both magnetically and by your phone's GPS.

Dude, where's my boat? - (Remembering a Location)

Before going walkabout in an unfamiliar location, and after safely mooring your boat of course, set the anchor distance to 0 and anchor your phone at it's current position, the anchor will now be your point of reference. Now set the drift distance to the area you wish to cover, make sure Anchor Tracking is on in the preferences and take the phone with you. Anchor Alert will show you in which direction and how far away your anchored location is and can guide you back, useful if you often forget where you left your boat / car / significant other!

Seriously Dude,.. where's my boat?! - (Stealth Tracking to Catch a Thief)

Leave your device with Anchor Alert running in background mode on the vessel you want to protect. Connect your device to the house batteries for longer life and make sure SMS alerts are enabled and another phone is set to receive them. If your boat moves outside a pre-defined area you'll get a text alert on the second phone. Set the text alerts to repeat and hide the device on the vessel somewhere making sure the audible / vibration alerts are off - you now have yourself a stealth tracker! Now if your vessel is taken by nefarious pirates of infamy or just stolen by small-time crooks you'll receive text messages containing either an embedded Google maps URL or plain text distance / bearing from the original anchor position, so you can locate and follow her easily (depending on house battery life and network access of course.)

Additional Information

Help and Support

Anchor Alert comes with a built-in user guide and help section accessible from the main menu, you will also receive free technical support by email for the life of your purchase. See About SlimJiM for contact details.

Further Development

Anchor Alert is under active development, when you buy you will automatically receive all upgrades as soon as they are released and at zero extra cost. You will also have the chance to participate in the development of Anchor Alert and have your say as to what features should be integrated in future releases, an example of which is the night-mode feature that was added in version 1.3.2 in response to a user request. Although there is no guarantee that all such feature requests can or will be implemented, where possible a detailed rationale for the decision to include or exclude a feature will usually be given, now we can't say fairer than that!

© 2010 - 2014 Simon Morgan, SlimJiM Software
